Required tools

  • 10 mm open-end wrench
  • 13 mm open-end wrench
  • 5 mm Allen key
  • Tool for disassembling the pillion footrests

Please note: If you are using an Insta360 or DJI Carbon Selfie Stick, the rubber grip must be removed.

Mounting an Insta360 / DJI Selfie Stick

Step 1.

Remove passenger footrest

First, remove the left passenger footrest, if present. On some motorcycles, e.g. Yamaha models, the rider’s seat must be removed first.

Step 2.

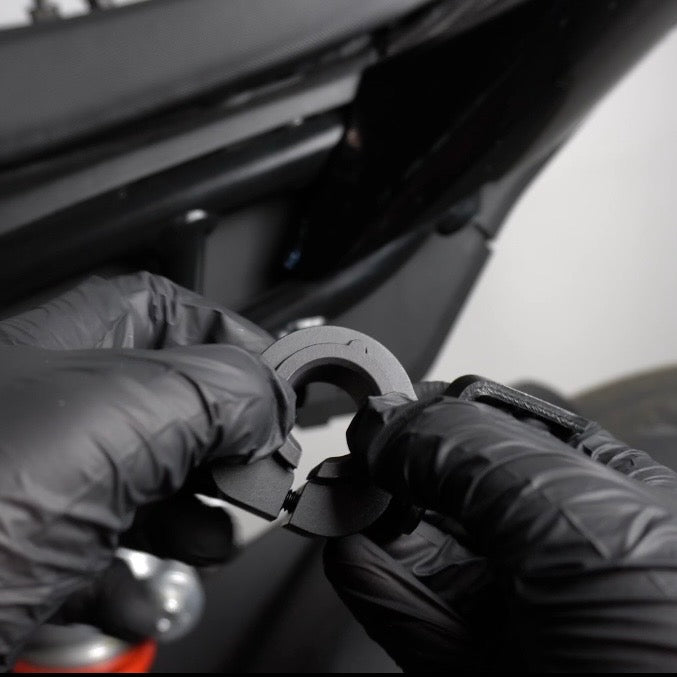

Install the adapters

Insert the adapters for your selfie stick into the mount. The adapters should audibly click into place and lock securely.

Step 3.

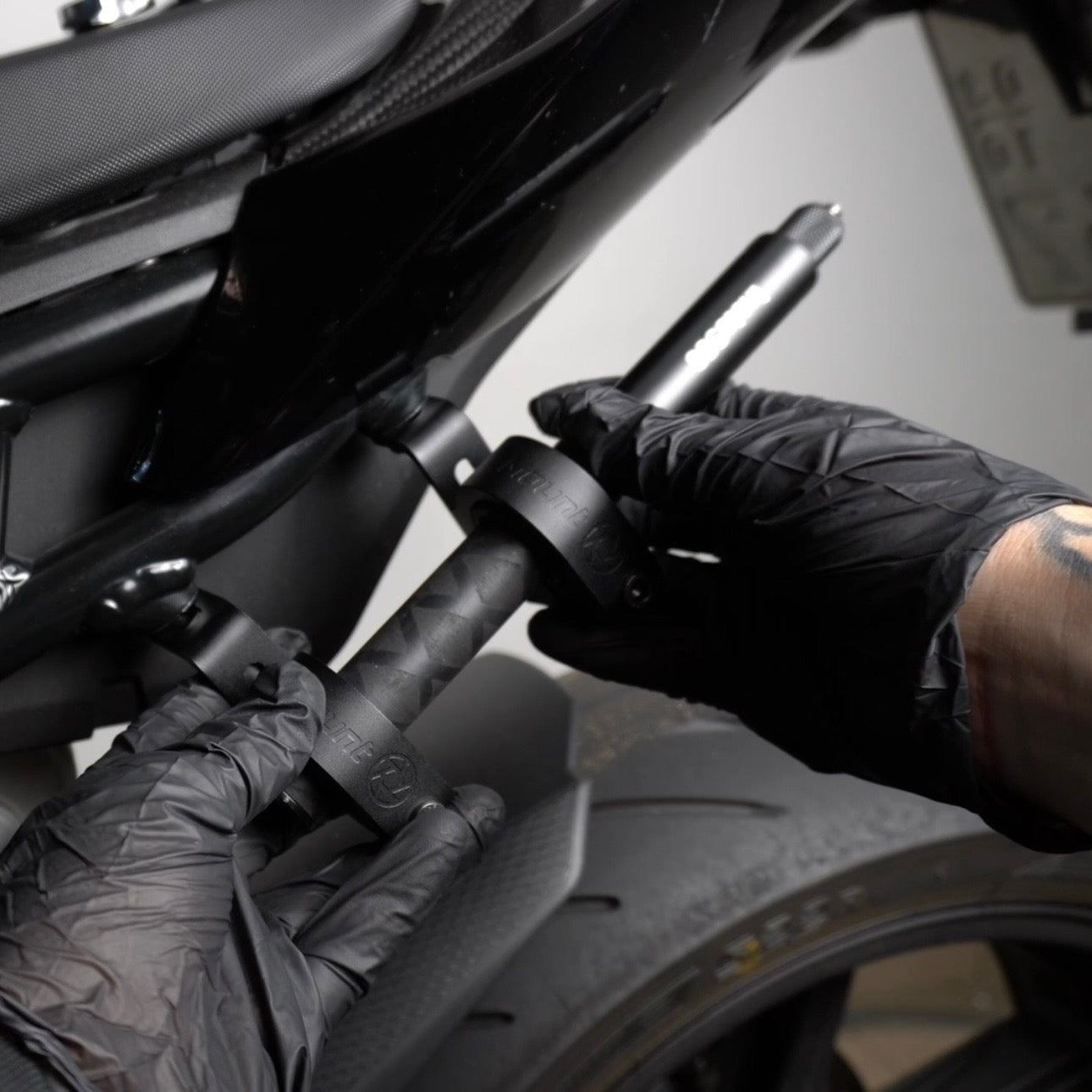

Assemble the selfie stick

Insert the selfie stick into the mount. Do not tighten the Allen screws yet.

Attach the aluminum bracket to your motorcycle using the supplied M8 bolts. Tighten them only hand-tight at this stage.

Step 4.

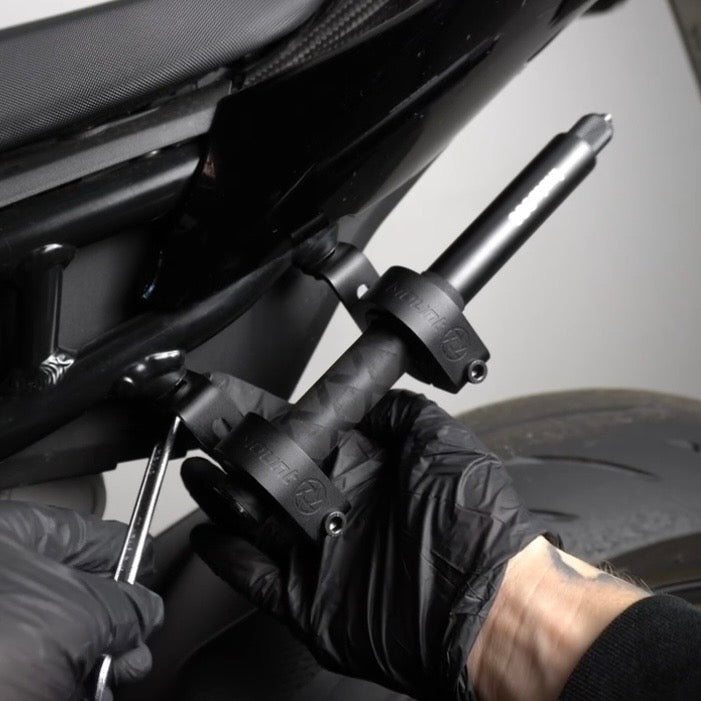

Align the bracket

Align the bracket using the elongated holes, then tighten the mounting bolts. Finally, tighten the Allen screws.

Note: Since this is a clamping connection, the screws do not need to be overtightened. They are also equipped with reusable thread-locking compound to prevent them from loosening during use.

Step 5.

Screw on the camera

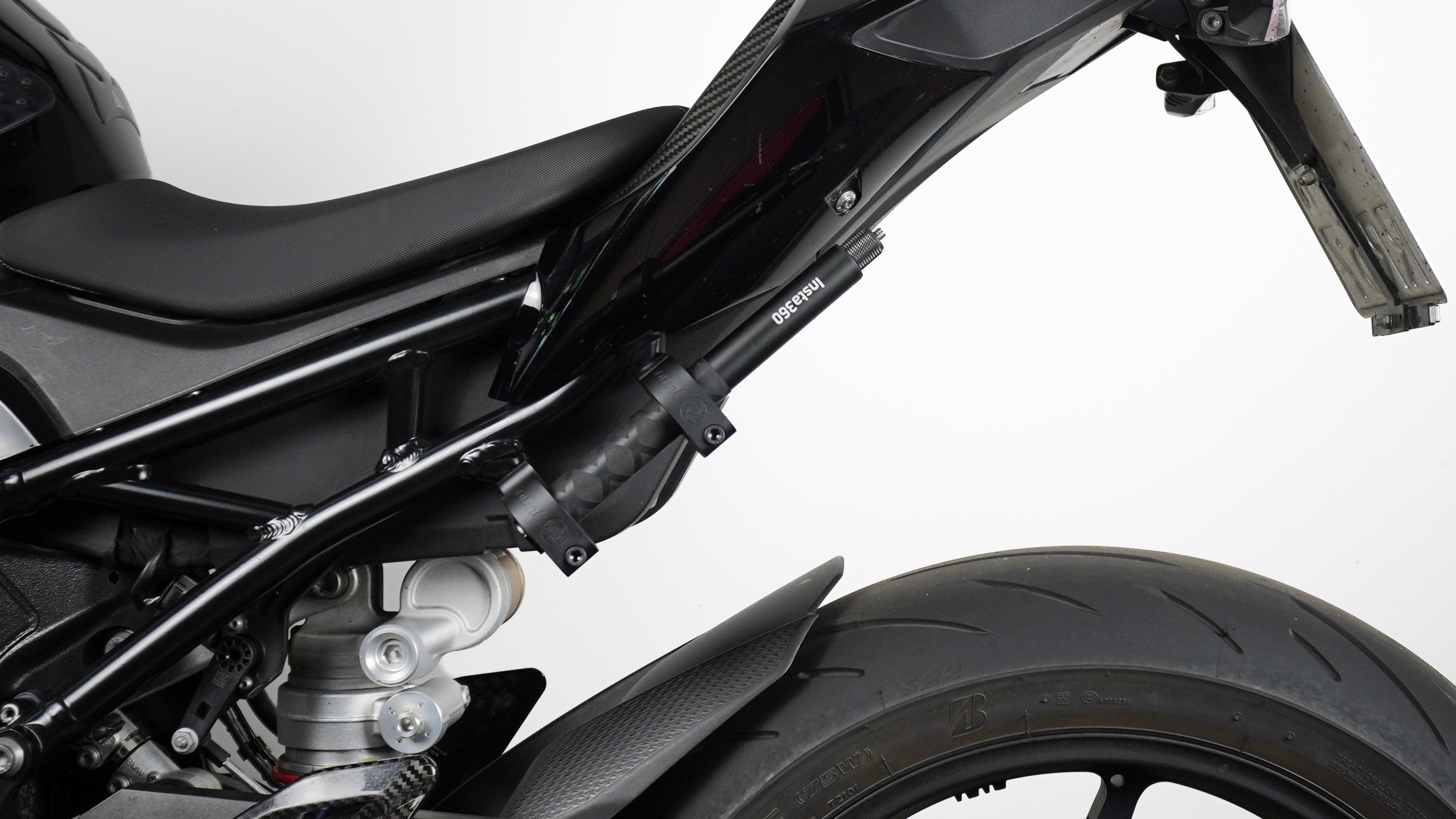

Done!

Now mount your 360° camera onto the selfie stick and enjoy impressive third-person shots on your next ride.

Ride safe and have fun with your RideMount!
